International Lohmann&stolterfoht gearbox repair

Lohmann&stolterfoht Gearbox Repair

GBS Gearbox Services international is the fastest, full service, worldwide specialist in gearbox repair of Lohmann&stolterfoht gearboxes. Taking the latest innovations of our gearbox service experts, our goal is to get, often mission critical, gearboxes back into production at the shortest timespan possible. We have a winning track record in Lohmann&stolterfoht servicing! Having experience with a wide variaty of brands, we know the weakspots and strengths of any brand and can not only repair but often improve the reliability of any gearbox system.

Lohmann & Stolterfoht industrial, maritime and wind Turbines gearboxes

Lohmann & Stolterfoht / Rexroth offers a wide selection of planetary gearboxes for mobile equipment, industrial applications and for wind turbines. Planetary gearboxes in mobile equipment are used as propel drives in tracked vehicles or as wheel drives in wheeled vehicles as well as swing drives for rotary motion and as winch drives for lifting and lowering loads. For industrial applications, Lohmann & Stolterfoht supplies planetary gearboxes with two, three or four planetary stages or combined with spur gear stage or bevel stage. The planetary gearboxes are available with numerous Lohmann & Stolterfoht hydraulic motors. A combination with electric motors is also possible. For wind turbines, Lohmann & Stolterfoht can supply generator gearboxes for power ratings from 660 to 5,000 kW as well as pitch and yaw drives.

GBS Gearbox Services international is specialised in services the gearboxes in all these industries, as our specialty lies in gearbox services. Our highly experienced emergency support experts work to provide effective solutions that meet your demands, getting your production running!

contact us

4 different projects on Lohmann & Stolterfoht gearbox services

  • Type:
  • GVA 1250 CSo
  • Lohmann & Stolterfoht
Scope of work:
- Replacement of the seals at the input and output shafts of gearbox Lohmann & Stolterfoht GVA 1250 CSo.
- Replacement of pump seals and rotary sealing part.
- Replacement of control boxes for pneumatic circuit by new engineered boxes
- The installation of the new control boxes.
- The functioning of the control box testing.
- Inspection of the overall condition of bearings, gears, shutters and labyrinths, due leakage problems.
Location - date:
Turku, Finland - January 2011
Lohmann Stolterfoht Lohmann Stolterfoht gearbox Lohmann Stolterfoht repair
  • Type:
  • GCS 800
  • Lohmann & Stolterfoht gearbox repair
Scope of work:

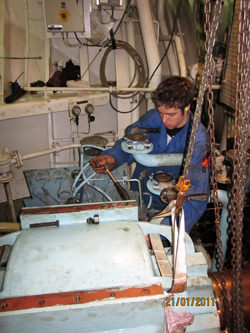

Inspection on gearbox Lohmann & Stolterfoht GCS 800 in Kalundborg. We went to Denmark for inspection on site.
Location - date:
Kalundborg, Denmark - January 2011
Lohmann Stolterfoht getriebe Lohmann Stolterfoht inspektion Gearbox of Lohmann Stolterfoht
  • Type:
  • GCS 850
  • Lohmann & Stolterfoht
Scope of work:
We preformed an inspection of the gearbox in Canada. Because of the latest incident and there were no possibility to inspect the sleeve and thrust bearings of the main gear set, we recommended:

Perform extensive inspection of the propulsion gearbox (disassembly of gearbox required):
- Check tooth contact patterns.
- Measure backlashes.
- Measure bearing clearances (radial and axial).
- Inspect sleeve bearings and shaft journals.
- Inspect thrust bearings.
- Perform non-destructive testing of gears.
- Perform an alignment check between output shaft and propeller shaft.

Provide results (reports / pictures) of earlier performed visual inspection of the propulsion gearbox to determine of the observed in-line pitting has been stabilized.
Location - date:
Newfoundland, Canada - May 2011
Lohmann Stolterfoht getriebe Lohmann Stolterfoht GCS 850 Lohmann Stolterfoht gearbox
  • Type:
  • GPV 235
  • Lohmann & Stolterfoht gearbox repair
Scope of work:
For the replacement of one of the bearings in a production line, our customer had to dismount the gearbox. During this dismounting the output shaft was damaged and it was thought that the output bearings in the gearbox were also damaged. getriebe

As a result an inspection of the complete gearbox was required, including the production of a new output shaft. The whole inspection, overhauling, engineering and producing of the gearbox and output shaft had to be done in less then two weeks. prüfung

Since no drawings where available, first thing done was the dismounting of the output shaft to get the shaft properties and to create a new drawing using reverse engineering. With this information the new hollow output shaft with a spline connection at the end was created in less then five days.

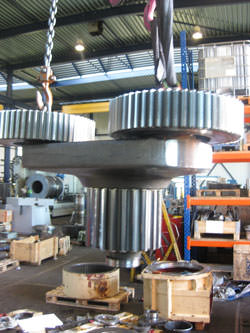

The Lohmann and Stolterfoht GPV 235 consist of a triple planetary reduction, with an output of 196 990 Nm.

All bearings were replaced and all planetary stages where checked on cracks. It was found that none of the gears had cracks or had to be renewed. With this information all the parts of the gearbox have been put together and a test run was made.

With this test run the temperatures in the gearbox were measured to make sure that there were no errors in the system.

During the overhaul the customer decided to let Gearbox Services International place the gearbox again in the production line. With this placement a Vibration Measurement was performed to be sure that the gearbox was properly placed.
Location - date:
The Netherlands / Belgium - July 2010
变速器 检查 Lohmann Stolterfoht Lohmann Stolterfoht getriebe Lohmann Stolterfoht gear service

For more than 20 years, GBS Gearbox Services has gained extensive knowledge of gear technology through new gearbox design and manufacture. Today, GBS is supplying service to Lohmann&stolterfoht gearboxes in marine and industrial markets.
Using this experience, our Services division will provide the highest level of commitment to existing and new customers for products already operating in the field.

Ship owners and Industrial companies throughout the world value the reassurance of the superior support provided by the skilled and dedicated engineering and technical specialists that form the GBS Gearsbox Services team.

Field Service Engineers are on constant standby to visit any ship or plant throughout the world. With an unrivalled average 25 years industry and marine experience, they are all fully qualified and certified to work in all environments, both on and offshore. Their high level of technical experience enables most work to be carried out on-site, supported by an practical experienced team of world-leading design and research engineers in the Netherlands.

Our Services team is qualified to inspect, maintain and repair any make or type of industrial or marine gearbox. Many working examples exist of improvements we have made to non-Lohmann&stolterfoht gearboxes, that have extended the life of the gearbox.

View all industrial gearbox brands in our database.

For Lohmann & Stolterfoht Gears we are working in the following markets

  • Power industry
    Total Power Station gearboxes
    Circulating Water Pump gearboxes
    Boiler Feed Pump gearboxes
    Coal Mill gearboxes
    Wind turbine gearboxes
    Hydro turbine gearboxes
    Gas turbine gearboxes
    Steam turbine gearboxes
    OIL & GAS OFFSHORE - Oil rigs and FPSO’s
    Turbine generator gearboxes
    All Mechanical drive gearboxes
    Boiler feed pump gearboxes
    Sea water injection pumps gearboxes
    Compressor gearboxes
  • (Petro) Chemical Industry
    OIL & GAS ONSHORE / PETROCHEMICAL – Pumping and refineries
    Turbine generator gearboxes
    All Mechanical drive gearboxes
    Boiler feed pump gearboxes
    Pipeline pumping gearboxes
    Pipeline compressor gearboxes
  • Marine
    Propulsion gearboxes
    Turbine generator gearboxes
  • Heavy Industry
    Heavy Industry
