Lohmann & Stolterfoht GPV 235

Reparing of Lohmann & Stolterfoht GPV 235 gearbox

getriebe Prüfung
Reparing of Lohmann & Stolterfoht GPV 235 gearbox

  • Lohmann & Stolterfoht prüfung
  • GPV 235
  • Input=___ rpm / ____ KW
  • Lohmann & Stolterfoht gearbox repair
  • NL

Scope of work:

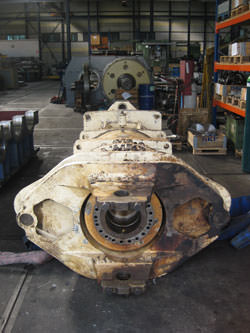

We performed repair on a gearbox LOHMANN & STOLTERFOHT GPV 235.

The conversion operations consists of:

  • For the replacement of one of the bearings in a production line, our customer had to dismount the gearbox. During this dismounting the output shaft was damaged and it was thought that the output bearings in the gearbox were also damaged. getriebe

    As a result an inspection of the complete gearbox was required, including the production of a new output shaft. The whole inspection, overhauling, engineering and producing of the gearbox and output shaft had to be done in less then two weeks.
  • prüfung

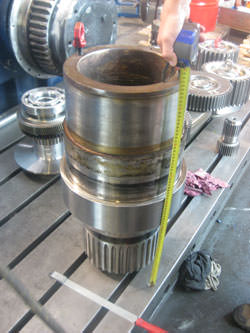

    Since no drawings where available, first thing done was the dismounting of the output shaft to get the shaft properties and to create a new drawing using reverse engineering. With this information the new hollow output shaft with a spline connection at the end was created in less then five days.

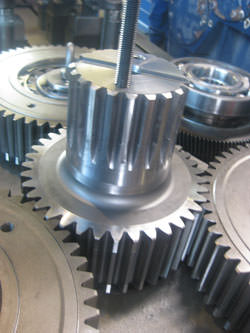

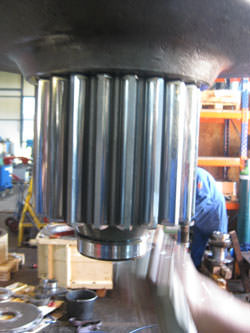

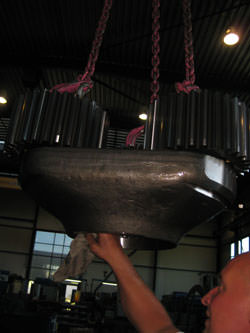

  • The Lohmann and Stolterfoht GPV 235 consist of a triple planetary reduction, with an output of 196 990 Nm.

    All bearings were replaced and all planetary stages where checked on cracks. It was found that none of the gears had cracks or had to be renewed.

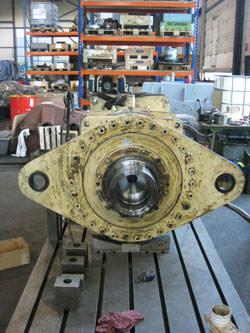

  • With this information all the parts of the gearbox have been put together and a test run was made.

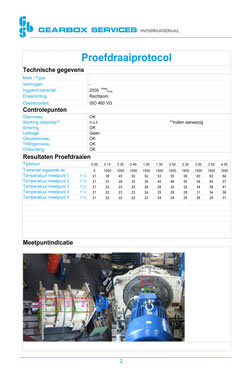

    With this test run the temperatures in the gearbox were measured to make sure that there were no errors in the system.

  • During the overhaul the customer decided to let Gearbox Services International place the gearbox again in the production line. With this placement a Vibration Measurement was performed to be sure that the gearbox was properly placed.

contact us

Location - date:

The Netherlands / Belgium - July 2010
