FLENDER KBH 400/S/So

FLENDER KBH 400/S/So Inspection and repair project

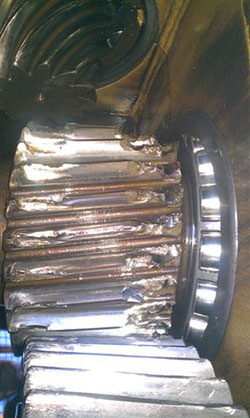

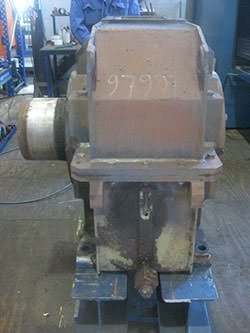

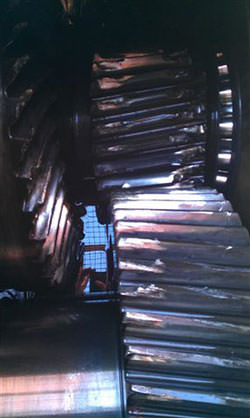

Inspection and repair of FLENDER KBH 400/S/So gearbox

  • Flender gearbox
  • KBH 400/S/So
  • Input=___ rpm / ____ KW
  • FLENDER gearboxes Repair
  • NL

Scope of work:

We performed an inspection and revision on FLENDER gearbox KBH 400/S/So.

The conversion operations consists of:

  • Disassembling, cleaning, visual inspection and assembling. Test run with report.
  • Renewing of various consumables such as gaskets and mounting hardware.

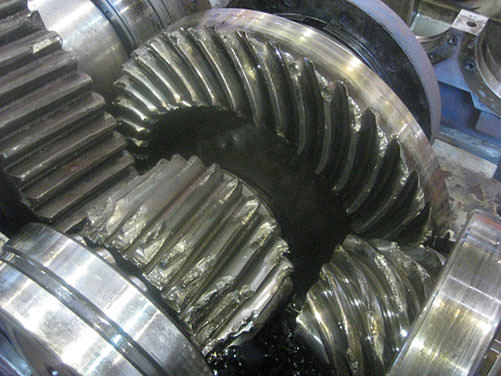

  • Renewing of spur bevel gear set.
  • Renewing of the pinion shaft.

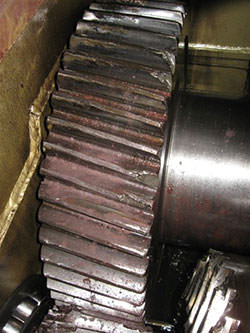

  • Renewing gear of the second gearset.
  • Replacing of the output hollow shaft excess.
  • Renewing of bronze bushes.
  • Renewing of the seals, bearings and innerrings.
  • Re-assembling of the gearbox.
  • The facing of the bearingcaps related to axial bearing clearances.

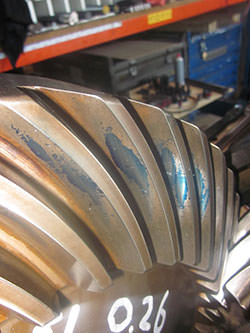

  • Controlling of the contact patterns and gear back lashes.
  • Preparing for test-run, drafting of the gearbox, filling with oil.
  • Degreasing on the outside of the gearbox and eqquiped with one coat after assembling.
  • Preparing the gearbox for shipping.

Location - date:

The Netherlands - March 2013
