FLENDER KBH 400/S/So Inspection and repair service

Inspection and repair of FLENDER KBH 400/S/So gearbox

  • Flender gearbox
  • KBH 400/S/So
  • Input=___ rpm / ____ KW
  • FLENDER gearboxes Repair
  • NL

Scope of work:

We performed an inspection and revision on gearbox of FLENDER KBH 400/S/So.

The conversion operations consists of:

  • Disassembling, cleaning and inspection of the gearbox.
  • Performing of the repair constructions.
  • Deploying of the inspection report.
  • Stop point.

  • The conversion operations for additional work:
    • The boring of the gearbox and the surfacing of the devisions.

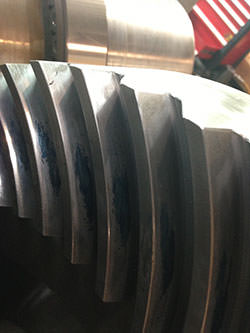

    • Lapping and controlling of the serrations of the spur bevel gear set.
    • Renewing of bronze bush.
    • Renewing of all seals and bearings.

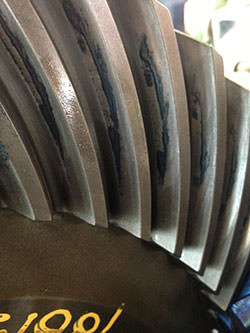

    • Controlling of the contact patterns and the flank backlashes.
    • Renewing of the oil level gage and the cell filler plug.
    • Renewing of diverse small items such as gaskets and bolts.
    • Re-assembling of the gearbox.
    • Performing a test run.
    • Degreasing of the gearbox and conserving on the outside in three coatings.
    • Preparing the gearbox for shipping.

contact us

Location - date:

The Netherlands - August 2013
