Inspection and repair of HANSEN PDC23S-BNN-14,5 gearbox

Inspection and repair of HANSEN PDC23S-BNN-14,5 gearbox

  • HANSEN gearbox
  • PDC23S-BNN-14,5
  • Input=___ rpm / ____ KW
  • Hansen Gearbox Repair
  • netherlands

Scope of work:

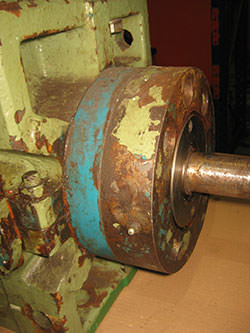

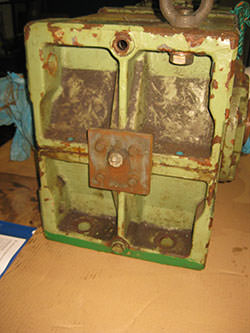

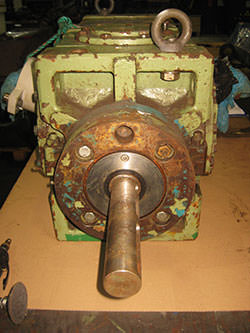

We performed inspection and repair on a gearbox Hansen PDC23S-BNN-14,5.

The conversion operation consists of:

  • Disassembling and cleaning of the gearbox.
  • Performing of the repair constructions.
  • Renewing of the seals and bearings.
  • Renewing of slight parts like gaskets and fastening products.
  • Re-assembling of the gearbox.
  • If it is necessary flatting of the bearingcaps with reference to axial bearing clearance.

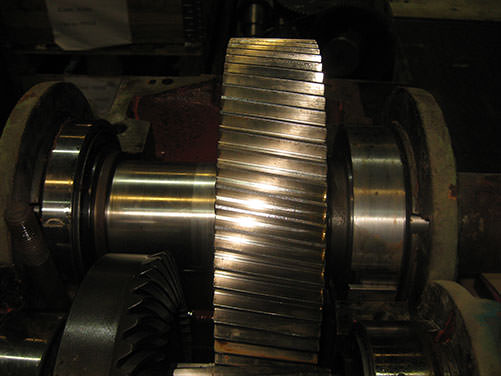

  • Controlling of the contact patterns and the flank backlashes on the gears of the gearboxes.
  • Preparing for test run, deploying of the gearbox, filling with oil and a test run for four hours.

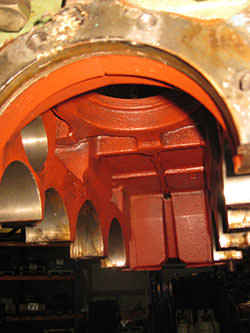

  • Degreasing on the outside and conserving in a DTM-coating.
  • Preparing of the gearbox for shipping.


Location - date:

The Netherlands - December 2013
