FLENDER KBH 400/S/So gearbox Inspection and overhaul

Inspection and repair of FLENDER KBH 400/S/So gearbox

  • Flender gearbox
  • KBH 400/S/So
  • Input=___ rpm / ____ KW
  • FLENDER gearboxes Repair
  • NL

Scope of work:

We performed an inspection and revision on gearbox of FLENDER KBH 400/S/So.

The conversion operations consists of:

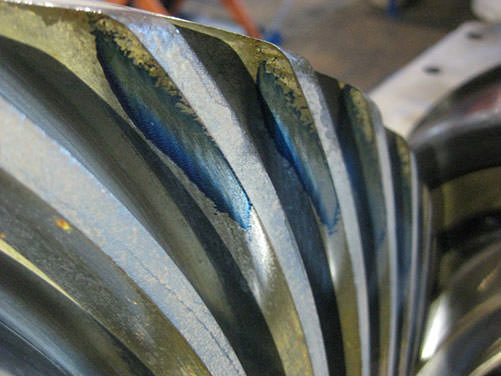

  • Disassembling, cleaning and inspection of the gearbox.
  • Performing of the repair constructions.
  • Deploying of the inspection report.
  • Stop point.
  • Preparing of a test run.

  • Gearbox
    • Filling of the top cover with liquid iron.
    • Renewing of the output hollow shaft excess.
    • Renewing of diverse small items such as gaskets and bolts.
    • Renewing of the bronze bush.
    • Renewing of the drain cock.
    • Renewing of all seals, bearings and inner rings.
    • Renewing of oil level gage and cell filler plug.
    • Renewing of the drain cock.
    • Renewing of the coupling E-motor.
    • Re-assembling of the gearbox.
    • Performing a test run.
    • Degreasing of the gearbox and conserving the outside in one coating.
    • Preparing the gearbox for shipping.

  • Swinge
    • Removing of all protrusive parts manually.
    • Renewing of the base plate.
    • Renewing of hinge bridge and rubber elements.
    • Renewing of the fulcrumpin.
    • Renewing of diverse small items.

contact us

Location - date:

The Netherlands - April 2013
