Inspection and repair of FLENDER E2HL Size 10 gearbox

Inspection and repair of FLENDER E2HL Size 10 gearbox

  • Flender gearbox
  • E2HL Size 10
  • Input=___ rpm / ____ KW
  • FLENDER gearboxes
  • belgium

Scope of work:

We performed an inspection and repair on a gearbox FLENDER E2HL Size 10.

The conversion operations consists of:

  • Disassembling and cleaning of the gearbox.
  • Inspection of the parts consisting of the following instruction:.

  • Gearbox casing:
    • A visual controlling of the gearbox for bursts, where possible.
    • A visual controlling of the inside and the outside of the preservation.
    • Controlling of the holes for damages and sizings.

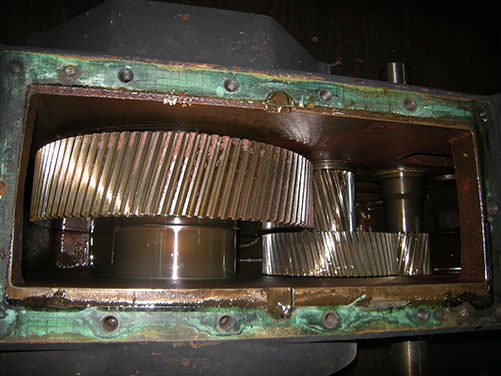

    • Inside:

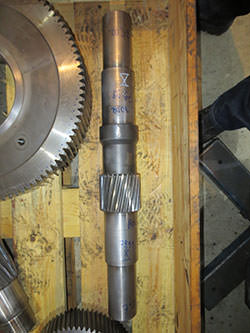

      • Controlling the condition of the toothing of the gearings.
      • Controlling of the bearings for damages.
      • Controlling of the contact patterns and back lashes of all gearings.

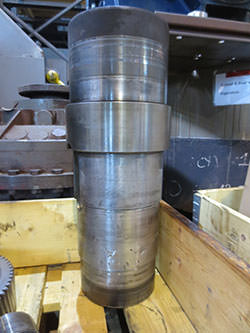

      • Controlling of the axis sizes in way of the bearings of oil seal rings and    couplings for measurements and damages.
      • Controlling of the gearing for bursts by means of magnafluxing.
      • Renewing of all seals and bearings.

  • Preparing for test run of the gearbox.
  • Degreasing and conserving the gearbox in two coatings after the gearbox is assembled.

contact us

Location - date:

Belgium - January 2014
