CFEM inspection

Inspection and repair service of CFEM 27H6SP gearbox

Inspection and repair of CFEM 27H6SP gearbox

  • CFEM gearbox
  • 27H6SP
  • Input=___ rpm / ____ KW
  • CFEM gearbox repair
  • Singapore

Scope of work:

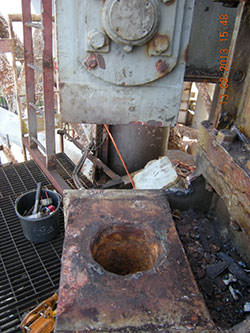

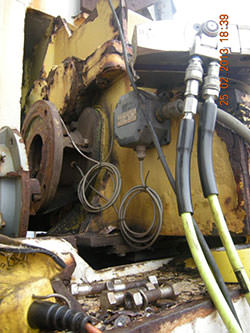

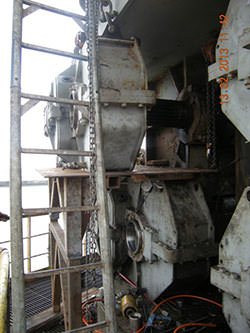

We performed an inspection and repair on a gearbox CFEM 27H6SP.

The conversion operations consists of:

The conversion operations consists of:

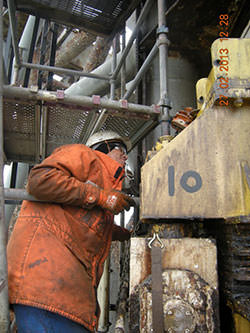

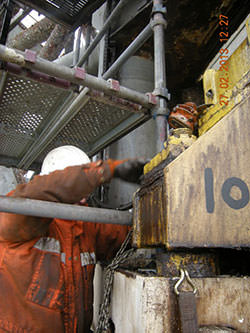

  • Disassembling the complete gearbox from the platform.
  • Transporting to our workshop.
  • Performing of the repair constructions.
  • Deploying of the inspection report.

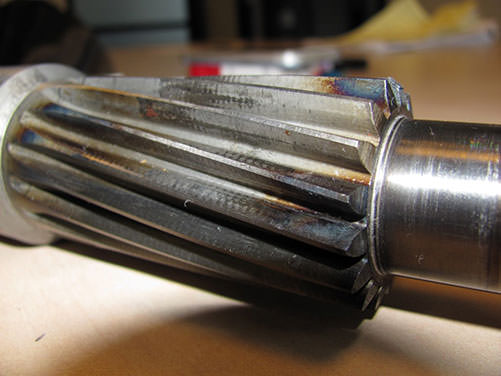

  • Re-grinding of pinion 1.
  • Renewing of gear 2.
  • Renewing of pinion 2.
  • Renewing of gear 3.

  • Renewing of all seals and bearings.
  • Renewing of 4 brass bearing bushes.
  • Replacing of both sleeves on the input shaft.
  • Replacing of air-breather.
  • Re-assembling of the gearbox.
  • Performing a test run.
  • Blasting and conserving of the inside and outside gearbox.
  • Preparing the gearbox for shipping.

contact us

Location - date:

Singapore - March 2013
